厂家直销38年专注工业泵研发制造

原油经减压蒸馏所得的残余油。又称减压渣油。有时将从常压蒸馏塔底所得的重油称为常压渣油。色黑粘稠，常温下呈半固体状。其性质与原油性质有关。在石油炼厂中，渣油常用于加工制取石油焦、残渣润滑油、石油沥青等产品，或作为裂化原料。在石油化工生产中，渣油可通过部分氧化法生产合成气或氢气，或作为蓄热炉裂解制乙烯的原料。渣油另一重要用途是用作燃料油。

渣油常用于加工制取石油焦、残渣润滑油、石油沥青等产品，或作为裂化原料。在石油化工生产中，渣油可通过部分氧化法生产合成气或氢气，或为蓄热炉裂解制乙烯的原料。渣油另一重要用途是用作燃料油。

The residual oil obtained from vacuum distillation of crude oil, also known as vacuum residue. Sometimes, the heavy oil obtained from the bottom of the atmospheric distillation column is referred to as atmospheric residue. It is black, viscous, and semi-solid at room temperature, with properties related to those of crude oil. In petroleum refineries, residue oil is commonly used to produce products such as petroleum coke, residual lubricating oil, and petroleum asphalt, or as feedstock for cracking. In petrochemical production, residue oil can be processed via partial oxidation to produce syngas or hydrogen, or serve as feedstock for thermal cracking to produce ethylene. Another important use of residue oil is as fuel oil.

Residual oil is commonly used in the production of petroleum coke, residual lubricating oil, petroleum asphalt, and other products, or as feedstock for cracking. In petrochemical production, residual oil can be processed via partial oxidation to produce syngas or hydrogen, or serve as feedstock for thermal cracking to produce ethylene. Another significant application of residual oil is as fuel oil.

渣油的温度和粘度参数因类型和加工工艺不同而有所差异，以下是关键信息：

温度与粘度关系

渣油的储存和泵送需控制温度以降低粘度。通常储存温度需高于倾点10℃以上（约40-50℃），泵送时建议80℃左右。若需雾化燃烧，温度可能进一步升高。

具体粘度数据

减压渣油：100℃运动粘度约662.3 mm2/s，密度1.0121 g/cm3。

高黏度渣油：100℃运动粘度＞1000 mm2/s，属于高黏度残渣油。

重质燃料油：黏度范围50-2000 mm2/s，密度0.94-1.06 g/cm3。

The temperature and viscosity parameters of residue oil vary depending on the type and processing method. The key information is as follows:

The relationship between temperature and viscosity

The storage and pumping of residual oil require temperature control to reduce viscosity. The storage temperature should typically be at least 10°C above the pour point (approximately 40-50°C), while pumping is recommended at around 80°C. For atomization combustion, the temperature may need to be further increased.  ?

Specific viscosity data

Deasphalted oil: kinematic viscosity at 100°C approximately 662.3 mm2/s, density 1.0121 g/cm3.  ?

High-viscosity residue oil: kinematic viscosity at 100°C > 1000 mm2/s, classified as high-viscosity residual oil.  ?

Heavy fuel oil: viscosity range 50-2000 mm2/s, density 0.94-1.06 g/cm3.

渣油泵选择那种泵好呢？

Which type of pump is suitable for residual oil?

高粘度齿轮泵具有通用密封系统所有的特点和优点，并且提供各种夹套选项，可以轻松处理需要加热或冷却的液体。标准夹套泵有端盖夹套和支架夹套，适合于沥青，巧克力等应用。全夹套泵在壳体和法兰部分增加夹套，为一些重要的工艺流程，如ABS，环氧树脂，聚酯（PET），提供了均匀的温度控制。

在泵的所有重要区域，均有夹套可供选用，包括支架、密封、壳体、法兰、端盖以及安全阀。

有填料密封，传统机械密封，集装式机械密封，以及无密封磁力驱动技术，为您提供最佳的选择，每次根据您的工况条件提供特定的密封解决方案——节省金钱、时间和计划的停车时间。

适合工况的材料选项

远东专用的铸铁和合金铸造厂为泵提供从铸铁到哈氏合金一系列材料。根据工况使用特定材料可以显著延长泵的寿命，减少维护和计划外停车时间，从而提高产量，节约成本。

保护流体特性

远东开发了多种容积式泵的原理来保护剪切敏感性液体，提供低剪切方案，以避免破坏纤维、聚合物和固体。全夹套选项为整台泵提供精确的温度控制。威肯磁力驱动泵和其他密封选项，防止流体与空气接触，确保流体的特性。

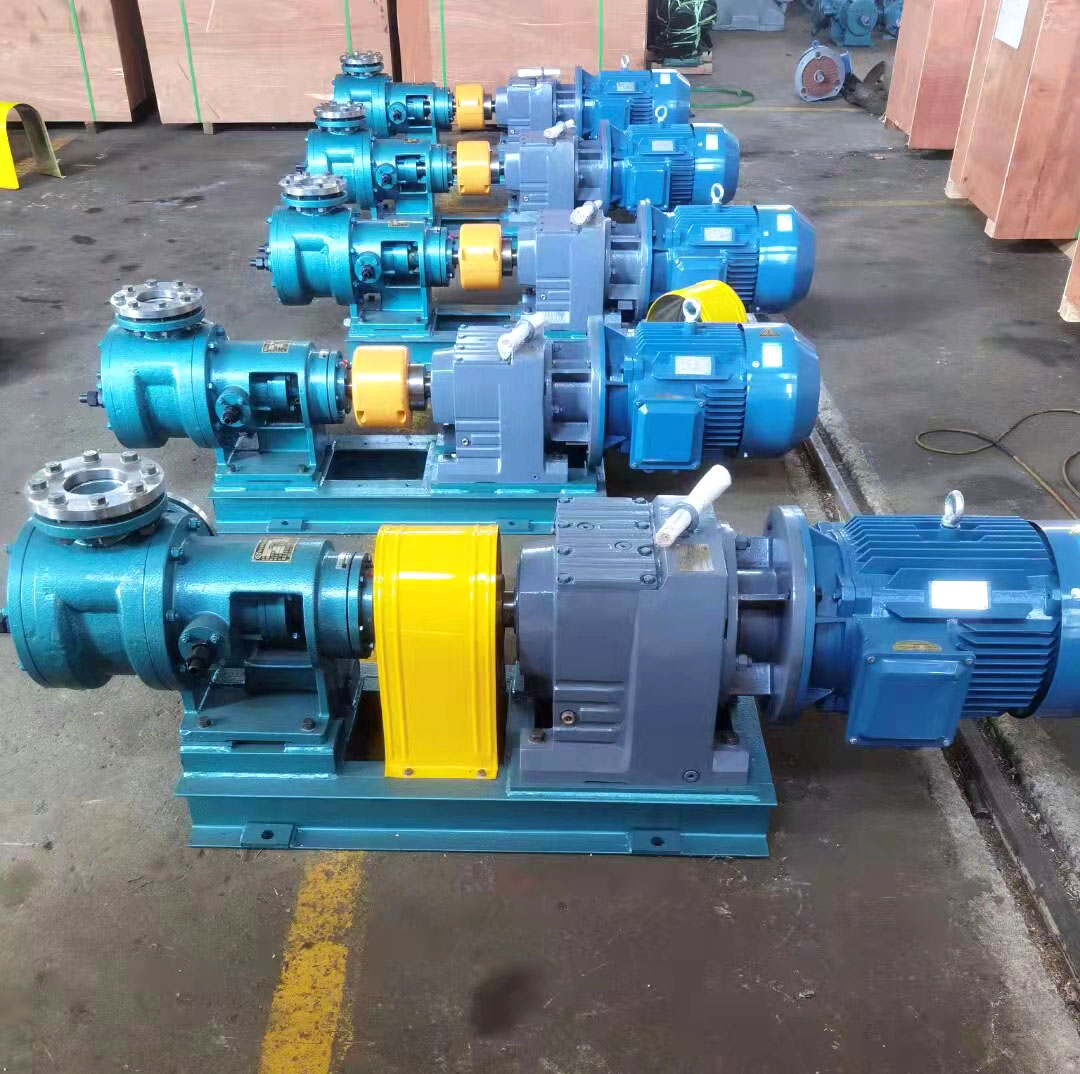

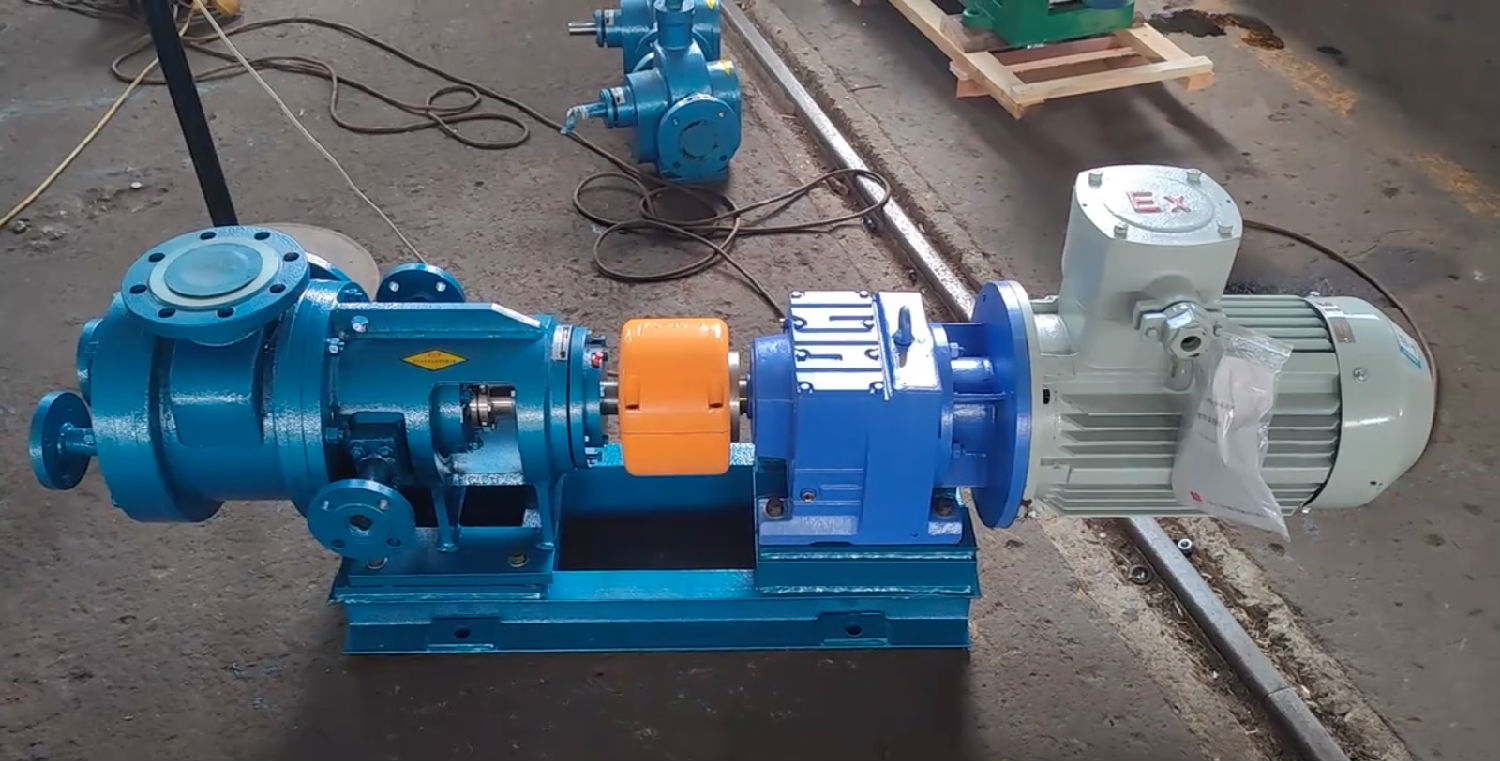

通用密封夹套内齿轮泵

工业泵，能够进行温度控制

此泵具有通用密封系统所有的特点和优点，并且提供各种夹套选项，可以轻松处理需要加热或冷却的液体。标准夹套泵有端盖夹套和支架夹套，适合于沥青，巧克力等应用。全夹套泵在壳体和法兰部分增加夹套，为一些重要的工艺流程，如ABS，环氧树脂，聚酯（PET），提供了均匀的温度控制。

优点：美国威肯VIKING通用密封夹套齿轮泵

在泵的所有重要区域，均有夹套可供选用，包括支架、密封、壳体、法兰、端盖以及安全阀。

夹套面积大，可进行快速加热和冷却，以更快地启动。

允许使用多种加热或冷却介质，包括热油、蒸汽和水。

多种夹套接口的位置，更易配管。

优化的端面间隙，使效率最大化。

多种端口的位置、配置和尺寸，增强了应用的灵活性。

经证实，均匀的温度控制提高了产品的一致性。

材质：铸铁、球墨铸铁、碳纲、不锈钢、合金C或合金20和其它、加硬材料，用于磨蚀性液体

密封：填料、普通机械密封、集装式机械密封、集装式三重唇封

端口：侧进侧出(180º)(壳体可旋转)、直角（90º)(壳体可旋转)、螺纹(NTP）、法兰（ANSI或DIN）、定制

安装：底脚安装、直联

The high viscosity gear pump has all the characteristics and advantages of a universal sealing system, and offers various jacket options to easily handle liquids that require heating or cooling. The standard jacket pump has end cap jackets and bracket jackets, suitable for applications such as asphalt and chocolate. The full jacket pump adds a jacket to the shell and flange, providing uniform temperature control for important processes such as ABS, epoxy resin, and polyester (PET).

In all important areas of the pump, there are jackets available for selection, including brackets, seals, shells, flanges, end caps, and safety valves.

We offer a range of sealing options, including packing seals, traditional mechanical seals, containerized mechanical seals, and unsealed magnetic drive technology, to provide you with the best choice. Each time, we provide a specific sealing solution based on your working conditions - saving you money, time, and planned parking time.

Material options suitable for working conditions

The Far East specialized cast iron and alloy foundry provides pumps with a range of materials from cast iron to Hastelloy. Using specific materials based on operating conditions can significantly extend the lifespan of the pump, reduce maintenance and unplanned downtime, thereby increasing production and saving costs.

Protecting fluid characteristics

Far East has developed various principles of positive displacement pumps to protect shear sensitive liquids and provide low shear solutions to avoid damaging fibers, polymers, and solids. The full jacket option provides precise temperature control for the entire pump. The Weiken magnetic drive pump and other sealing options prevent fluid from coming into contact with air, ensuring the characteristics of the fluid.

Universal sealing jacket internal gear pump

Industrial pumps capable of temperature control

This pump has all the features and advantages of a universal sealing system, and offers various jacket options to easily handle liquids that require heating or cooling. The standard jacket pump has end cap jackets and bracket jackets, suitable for applications such as asphalt and chocolate. The full jacket pump adds a jacket to the shell and flange, providing uniform temperature control for important processes such as ABS, epoxy resin, and polyester (PET).

Advantages: Viking Universal Seal Jacket Gear Pump from the United States

In all important areas of the pump, there are jackets available for selection, including brackets, seals, shells, flanges, end caps, and safety valves.

The jacket has a large area and can be quickly heated and cooled for faster start-up.

Allow the use of multiple heating or cooling media, including hot oil, steam, and water.

Multiple positions for jacket interfaces make piping easier.

Optimized end face clearance to maximize efficiency.

The location, configuration, and size of multiple ports enhance the flexibility of applications.

It has been confirmed that uniform temperature control improves product consistency.

Material: cast iron, ductile iron, carbon steel, stainless steel, alloy C or alloy 20, and other hardened materials, used for abrasive liquids

Sealing: packing, ordinary mechanical seal, containerized mechanical seal, containerized triple lip seal

Ports: Side in and side out (180 º) (rotatable housing), right angle (90 º) (rotatable housing), threaded (NTP), flange (ANSI or DIN), customized

Installation: Foot installation, direct connection
